trains, and aviation
-
Advertising media
-
Exhibition display
-
Popular science education
4K high-definition display screen
3D video playback, naked eye viewing, light field screen, LCD lens
-
3D looking around without any wearable devices
-
Facial tracking algorithm
-
High definition 4K resolution technology
-
Can switch freely between 2D and 3D
all-in-one machine
-
No auxiliary equipment
requiredNo need to wear 3D glasses or head-mounted display equipment , you can watch stereoscopic images directly with naked eyes
-
Wide viewing angle
and multiple viewpointsThe horizontal viewing angle can reach 120 degrees, supporting multi-viewpoint viewing, and different angles can still maintain a sense of stereo.
-
Strong sense of depth and realistic
stereoscopic effectSimulate real light propagation to make 3D images have a stronger sense of depth and reality.
all-in-one machine
-
High resolution and clarity
Adopt 4K or higher resolution display technology to ensure that 3D images are delicate and free of moiré interference.
-
High brightness and low power consumption
Adopt LED backlight or Mini LED technology to increase brightness,Lower power consumption, energy saving and environmental protection.
-
Super strong visual impact.
Simulate real light propagation to make 3D images have a stronger sense of depth and reality.
-

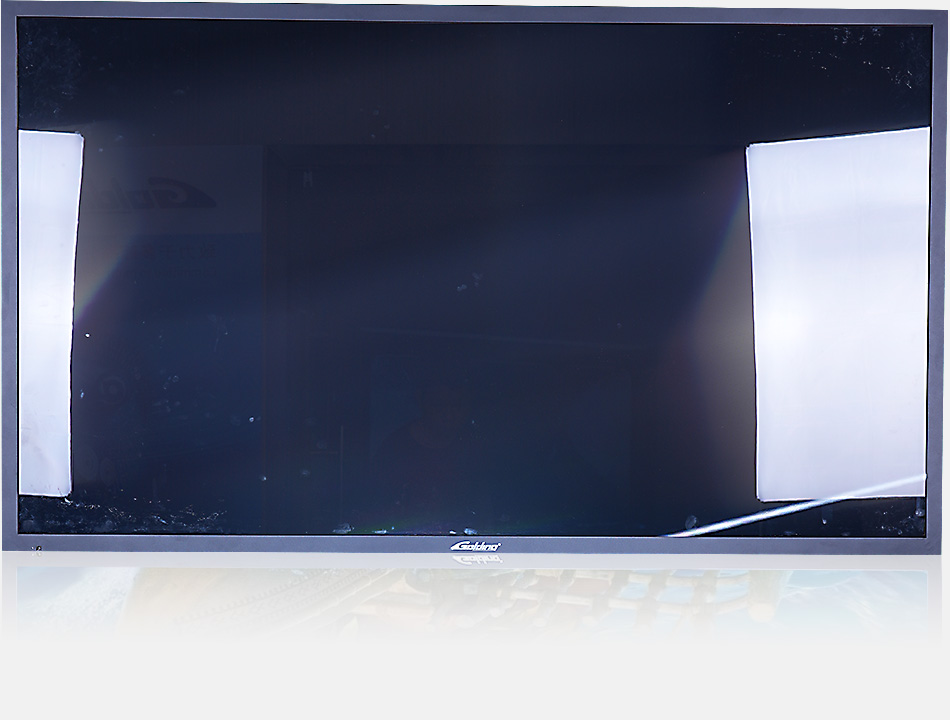

65-inch glasses-free 3D display 86-inch glasses-free 3D display
-
Configure Parameters
-
CPU
RK3399, Dual Cortex-A72 Large Core + Quad Cortex-A53 -
GPU
Quad-core ARM Mali-T 860MP4 high-performance GPU -
RAM
2G is standard -
ROM
Standard 16G standard -
System
Android 7. 1+
Panel Parameters
-
Panel Size
65 inches -
Liquid Crystal Type
LCD -
Backlit Form
Straight down -
Resolution
2D:3840×2160 3D:1280X 720 -
Maximum Brightness
450nit -
Contrast
5000:1 -
Viewing Angle
Up, down, left and right: 89°/89°/89°/89° -
Refresh Rate
60Hz -
Response time
8ms -
Chroma
1.07B
3D Display Technology
-
Optical Lenses
3D lenses -
Binocular Tracking
No, you don't -
3D Out Of the Screen
45cm -
3D display of field of view
60 degrees -
3D shows the optimal range
100cm-800cm
Functional Applications
-
WIFI
Set WIFI, support dual-band WIFI, single antenna -
Network Standard
Ethernet x 1 -
Playback Mode
Loop playback mode is supported -
Video Format
MP4、AV I、MKV -
Video Input
HDMI -
Image Format
JPG、JPEG -
Audio Format
MP3、WMA、AAC
Operating Environment/Power Supply
-
Service Life
5000hr -
Operating Temperature
0℃～ 40℃ -
Operating Humidity
20~80% RH (no condensation） -
Storage Temperature
-5℃～ 45℃ -
Store Humidity
20~ 90% RH (no condensation) -
Voltage
100~ 240VAC（50～ 60Hz） -
power Consumption
Max 235W
Installation and packaging
-
Appearance size (bare metal)
1484. 5*861. 5*92. 3mm -
Net Weight
70kg -
Gross Weight
85kg -
Installation
Wall mounting, mobile bracket (optional)
Configure Parameters
-
CPU
RK3399, dual Cortex-A72 large core + four Cortex-A53 -
GPU
Quad-core ARM Mali-T860MP4 high-performance GPU -
RAM
Standard 2G -
ROM
Standard 16G -
System
Android 7. 1+
Panel Parameters
-
Panel Size
86 inches -
Liquid Crystal Type
LCD -
Backlit Form
Direct style -
Resolution
2D：3 8 4 0 × 2 1 6 0 3D：1280X720 -
Maximum Brightness
450nit -
Contrast
3000:1 -
Viewing Angle
Up, down, left and right: 89°/89°/89°/89° -
Refresh Rate
60Hz -
Response time
8ms -
Chroma
1.07B
3D Display Technology
-
Optical Lenses
3D lenses -
Binocular Tracking
unnecessary -
3D Out Of the Screen
65cm -
3D display of field of view
60 degrees -
3D shows the optimal range
200cm-1000cm -
operating system
Supports Windows/Android dual systems
Functional Applications
-
WIFI
Set WIFI, support dual-band WIFI, single antenna -
Network Standard
Ethernet x 1 -
Playback Mode
Loop playback mode is supported -
Video Format
MP4、AVI、MKV -
Video Input
HDMI -
Audio Format
MP3、WMA、AAC -
Speaker
Two-channel 2*10w -
USB port
USB3. 0*2 /USB2. 0*2 / RJ45*1 -
Touch interface
USB-B*1 (rear side)/USB-B*1 (front), not valid at the same time
Operating Environment/Power Supply
-
Service Life
5000hr -
Operating Temperature
0℃～ 40℃ -
Operating Humidity
20~80% RH (no condensation） -
Storage Temperature
-5℃～ 45℃ -
Store Humidity
20~ 90% RH (no condensation) -
Voltage
100~ 240VAC（50～ 60Hz） -
power Consumption
Max 235W
Installation and packaging
-
Appearance size (bare metal)
1644*1050*240mm -
Net Weight
70kg -
Gross Weight
85kg -
Installation
Wall-mounted, mobile bracket (optional)
-
